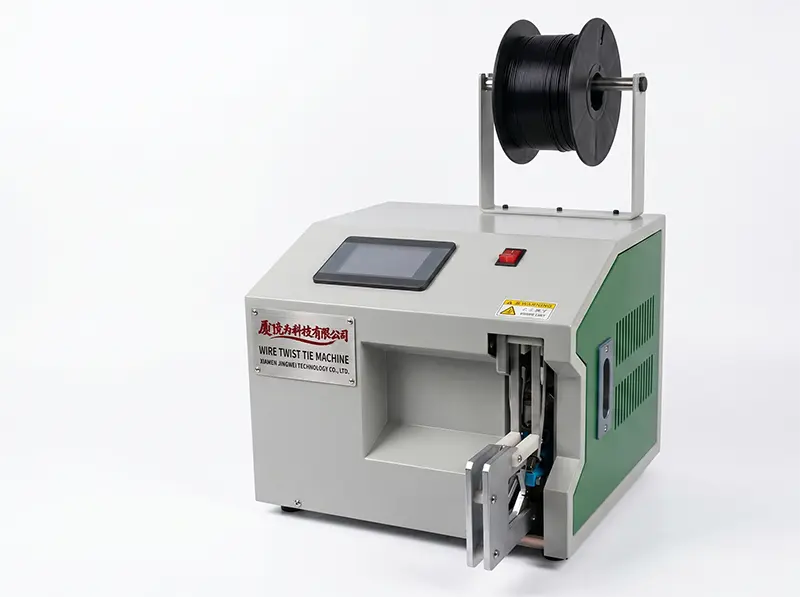

Automatic Wire Twist Tie Machine for Cable Bundling WPM-845A

Name: Automatic Wire Twist Tie Machine for Cable Bundling WPM-845A
Brand: Automatic Cable Stripping Equipment
SKU: WPM-845A
Availability: InStock
Rating: 5 (1 reviews)

WPM-845B: Automatic Twist Tie Machine for Efficient Cable Bundling

The WPM-845B represents a highly versatile automatic twist tie machine that has been meticulously designed with the intention of significantly streamlining the cable bundling process. This remarkable machine proves to be ideal for a diverse array of applications, not limited to but including the secure fastening of wires, hoses, and other cylindrical objects.

In terms of features, it offers highly efficient operation. Four motors, namely stepping motors for feeding, cutting, and twisting, in conjunction with PLC program control, ensure a seamless automated process of cable tie feeding, cutting, and twisting. This combination results in maximum efficiency, enabling users to complete cable bundling tasks with ease and speed.

Moreover, it provides precise control. A separate stepping motor that is controlled by a foot pedal allows for extremely accurate wire winding. This feature is particularly useful for those who require a high level of precision in their cable management tasks.

Regarding its wide applicability, users can choose from a comprehensive range of machine sizes to accommodate various binding wire diameters. For instance, there is a smaller machine option with diameters ranging from 5mm to 30mm or 8mm to 30mm. There is also a medium-sized machine with a diameter range of 18mm to 45mm. Additionally, a large machine is available with a diameter range of 40mm to 80mm. This extensive selection ensures that users can find the perfect size to meet their specific needs.

Upgrade your cable management system with the WPM-845B automatic twist tie machine. Don't hesitate to contact us today to discover the ideal size that caters precisely to your requirements.

Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM

Model	WPM-845A	WPM-845B	WPM-845C	WPM-845D
Voltage	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz
Rated power	≤100W	≤100W	≤100W	≤100W
Dimensions	L350×W456×H315mm (Ribbon holder excluded)	L380×W420×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)
Weight	25KG	32KG	40KG	45KG
Tie length	65-130mm	75-140mm	120-190mm	200-300mm
Bundling diameter	5-30mm	8-30mm	18-45mm	40-80mm
Bundling speed	0.6s/time	0.6s/time	0.6s/time	0.6s/time
Ribbon	iron core plastic coating	iron core plastic coating	iron core plastic coating	iron core plastic coating
Input method	HMI touch screen	HMI touch screen	HMI touch screen	HMI touch screen

1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty

Wire Binding machine, wire tying machine, twisting tie machine

Wire Binding machine, wire tying machine, twisting tie machine

What is the production capacity of the WPM-845A Automatic Wire Twist Tie Machine?

The WPM-845A is a high-speed machine capable of producing up to 2200 bundles per hour, with a cycle time of 0.75 seconds per tie. This makes it ideal for high-volume production lines requiring efficient and reliable cable bundling.

What types of materials can the WPM-845A bundle?

This automatic twist tie machine is designed to bundle a wide range of cylindrical objects. It is perfectly suited for wires, cables, hoses, and tubing. Its adjustable settings allow it to handle various bundle diameters and materials commonly used in electrical, automotive, and general manufacturing.

How is the WPM-845A controlled and what are the benefits?

The machine features advanced PLC (Programmable Logic Controller) control. This ensures precise, consistent, and reliable operation. The PLC system allows for easy setup, customization of tie parameters, and provides stable performance with minimal manual intervention, reducing operator error and increasing overall line efficiency.

What are the key technical features that ensure precision?

Precision is achieved through a robust design incorporating four stepping motors. These motors control critical functions like feeding, twisting, and cutting with high accuracy. This multi-motor system ensures consistent tie tightness, precise tie placement, and clean cuts, resulting in professional, secure bundles every time.

What are the main benefits of automating wire bundling with this machine?

Automating with the WPM-845A delivers significant benefits: drastically increased output, consistent bundle quality, and reduced labor costs. It minimizes repetitive strain injuries for workers and ensures uniform product presentation. The PLC-controlled automation also integrates seamlessly into existing production lines, enhancing overall productivity and return on investment.
