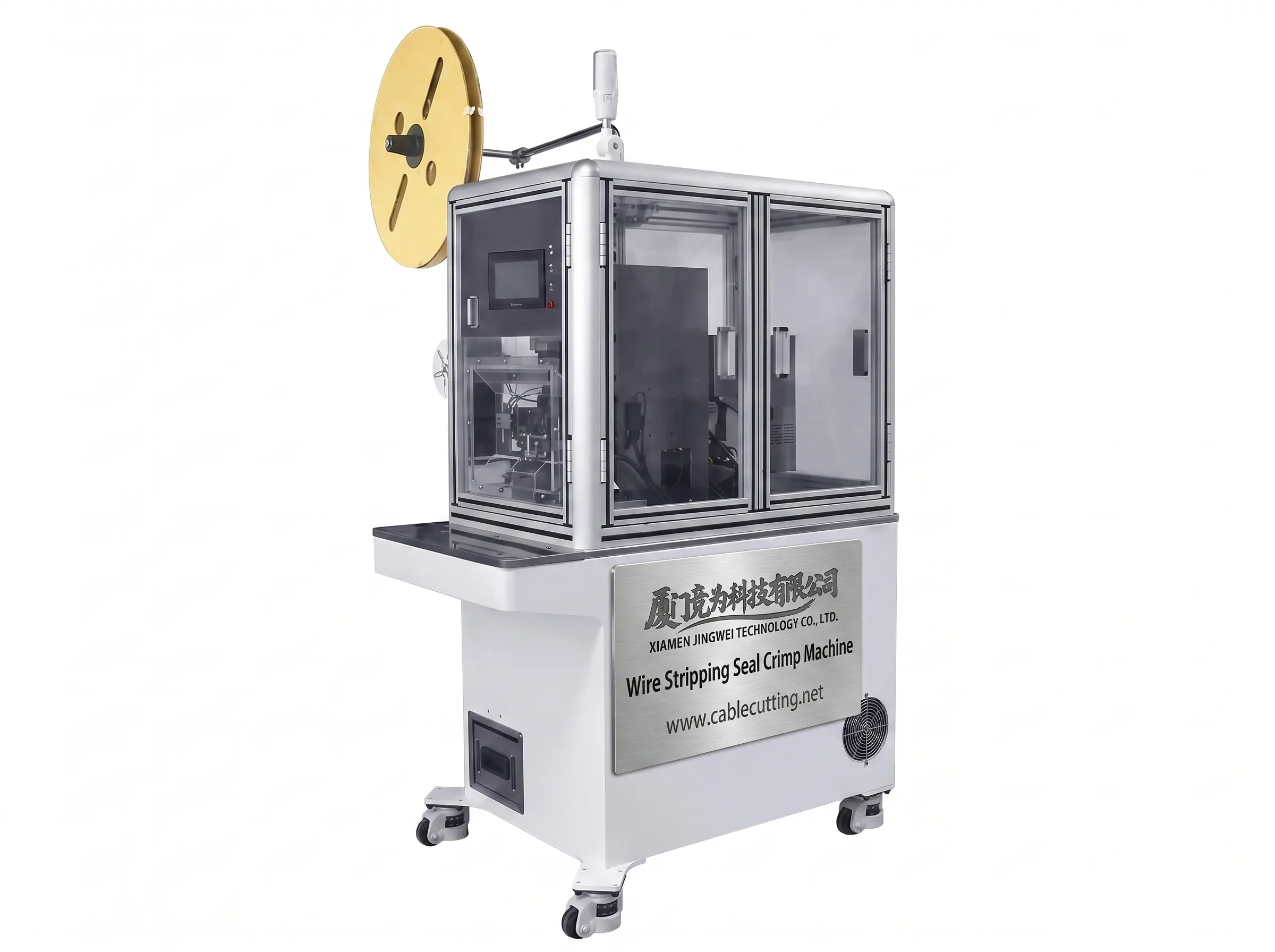

Semi-Automatic Wire Stripping Seal Crimp Machine WPM-5030

Name: Semi-Automatic Wire Stripping Seal Crimp Machine WPM-5030
Brand: Automatic Cable Stripping Equipment
SKU: WPM-5030
Availability: InStock
Rating: 5 (1 reviews)

Semi-Automatic Wire Stripping Seal Crimp Machine WPM-5030
Semi-automatic wire stripping seal insertion terminal crimping machine, sheathed cable seal loading machine

Maximize Efficiency with the Advanced Wire Strip Seal Crimp Machine

Introducing the Wire Strip Seal Crimp Machine, a cutting-edge semi-automatic solution designed to streamline your wire harness production process. This versatile machine, also known as the Semi-automatic Wire Stripping, Seal Insertion and Terminal Crimping Machine or Sheathed Cable Seal Loading Machine, model WPM-5030, integrates three critical processes into a single efficient unit. Boost your productivity, enhance accuracy, and reduce labor costs with this all-in-one wire processing powerhouse.

Integrated Wire Processing for Unmatched Efficiency

The Wire Strip Seal Crimp Machine WPM-5030 revolutionizes wire harness assembly by combining wire stripping, seal insertion, and terminal crimping into a seamless semi-automatic operation. This integration significantly reduces handling time and eliminates manual transfer between stations, drastically improving overall production efficiency. Specifically designed as a Sheathed Cable Seal Loading Machine, it expertly handles wires requiring waterproof seals, ensuring robust and reliable connections.

Key Features and Benefits of the Wire Strip Seal Crimp Machine WPM-5030:

All-in-One Wire Processing: Integrates wire stripping, seal insertion, and terminal crimping into a single machine, maximizing efficiency.
Semi-Automatic Operation: Reduces labor costs while maintaining high precision and consistency.
Sheathed Cable Seal Loading: Specifically designed for loading and crimping waterproof seals onto sheathed cables.
Wide Wire Range: Handles a broad range of wire sizes from 0.2 to 2.5 mm².
Precise Stripping Length Adjustment: Stripping length adjustable from 0.1 to 10 mm with high precision (±0.02 mm).
High Crimping Capacity: Powerful 3.0 T crimping capacity ensures secure and reliable terminal connections.
User-Friendly Interface: Offers a choice of Chinese or English display languages for easy operation and setup.
Compressed Air Operation: Utilizes efficient compressed air (0.5 - 0.7 MPA) for robust performance.
Optional CFM: CFM (Cubic Feet per Minute) option available to tailor the machine to specific air supply requirements.
Waterproof Plug Compatibility: Processes waterproof plugs up to 10 × 10 mm in size.
Robust and Durable Design: Heavy-duty construction (300 KG weight) ensures stability and long-term reliability in demanding production environments.

Model WPM-5030: Specifications at a Glance

Feature	Specification
Model	WPM-5030
Machine Type	Semi-automatic Wire Stripping, Seal Insertion and Terminal Crimping Machine, Sheathed Cable Seal Loading Machine
Applicable Wire Range	0.2 - 2.5 mm²
Stripping Length	0.1 - 10 mm
Cutting Precision	±0.02 mm
Stroke	40 mm
Crimping Capacity	3.0 T
Power Supply	220V/110V, 50/60 HZ
Display Languages	Chinese/English
Compressed Air	0.5 - 0.7 MPA
External Dimensions	850 mm (L) × 880 mm (W) × 1300 mm (H)
Weight	300 KG
Optional Features	CFM (Cubic Feet per Minute)
Waterproof Plug Size	≤10 × 10 mm

Transform Your Wire Harness Assembly Line Today!

The Wire Strip Seal Crimp Machine WPM-5030 is the ideal solution for manufacturers looking to optimize their wire harness production. Its integrated functions, precision, and robust design make it an invaluable asset for any wire processing operation. Contact us today to learn more about how the Semi-automatic Wire Stripping, Seal Insertion and Terminal Crimping Machine can revolutionize your production line and enhance your product quality!

Waterproof plug size ≤10*10mm

Semi automatic wire stripping seal insertion terminal crimping machine , sheathed cable seal loading machine

What are the main functions of the WPM-5030 Semi-Automatic Wire Stripping Seal Crimp Machine?

The WPM-5030 is a multi-functional wire processing machine designed to streamline wire harness production. Its primary functions are precisely stripping insulation from wire ends, automatically inserting a sealing grommet (seal) onto the sheathed cable, and crimping a terminal onto the stripped conductor—all in one semi-automatic cycle. This integration significantly boosts efficiency and consistency compared to performing these operations separately.

What wire sizes can the WPM-5030 machine handle?

The WPM-5030 is versatile and handles a wide range of wire cross-sections, specifically from 0.2 mm² to 2.5 mm². This makes it suitable for many common applications in automotive, appliance, and industrial control wire harness manufacturing. Always confirm your specific wire specifications with our technical team to ensure optimal machine setup and performance.

How does the semi-automatic operation of the WPM-5030 improve production efficiency?

The semi-automatic operation means the operator simply loads the wire, and the machine automatically performs the sequential stripping, seal loading, and crimping actions with a single activation. This reduces manual handling, minimizes operator fatigue, and ensures a consistent, high-quality result on every piece. It drastically increases output rates and reduces processing errors compared to fully manual methods, offering an excellent balance of speed, flexibility, and cost-effectiveness for small to medium batch production.

What is a 'seal insertion' or 'sheathed cable seal loader' function, and why is it important?

The seal insertion function refers to the machine's ability to automatically place a rubber or plastic grommet (seal) onto a sheathed cable. This seal is critical in many wire harness applications, particularly in automotive and outdoor equipment, as it provides environmental protection. It seals the entry point where the wire bundle passes through a panel or connector housing, preventing the ingress of dust, moisture, and liquids. The WPM-5030 automates this precise and often tedious manual task, ensuring proper seal placement every time.

Is the WPM-5030 suitable for high-volume wire harness production?

The WPM-5030 is an ideal solution for small to medium batch production, prototyping, and applications requiring frequent changeovers. While it is not a fully automated, high-speed system, its semi-automatic design offers superior speed and consistency over manual processing. It provides a significant efficiency boost for workshops and production lines that need flexibility to process various wire types and terminal/seal combinations without the large investment required for fully automated lines. For dedicated, ultra-high-volume single applications, we recommend inquiring about our fully automatic models.
