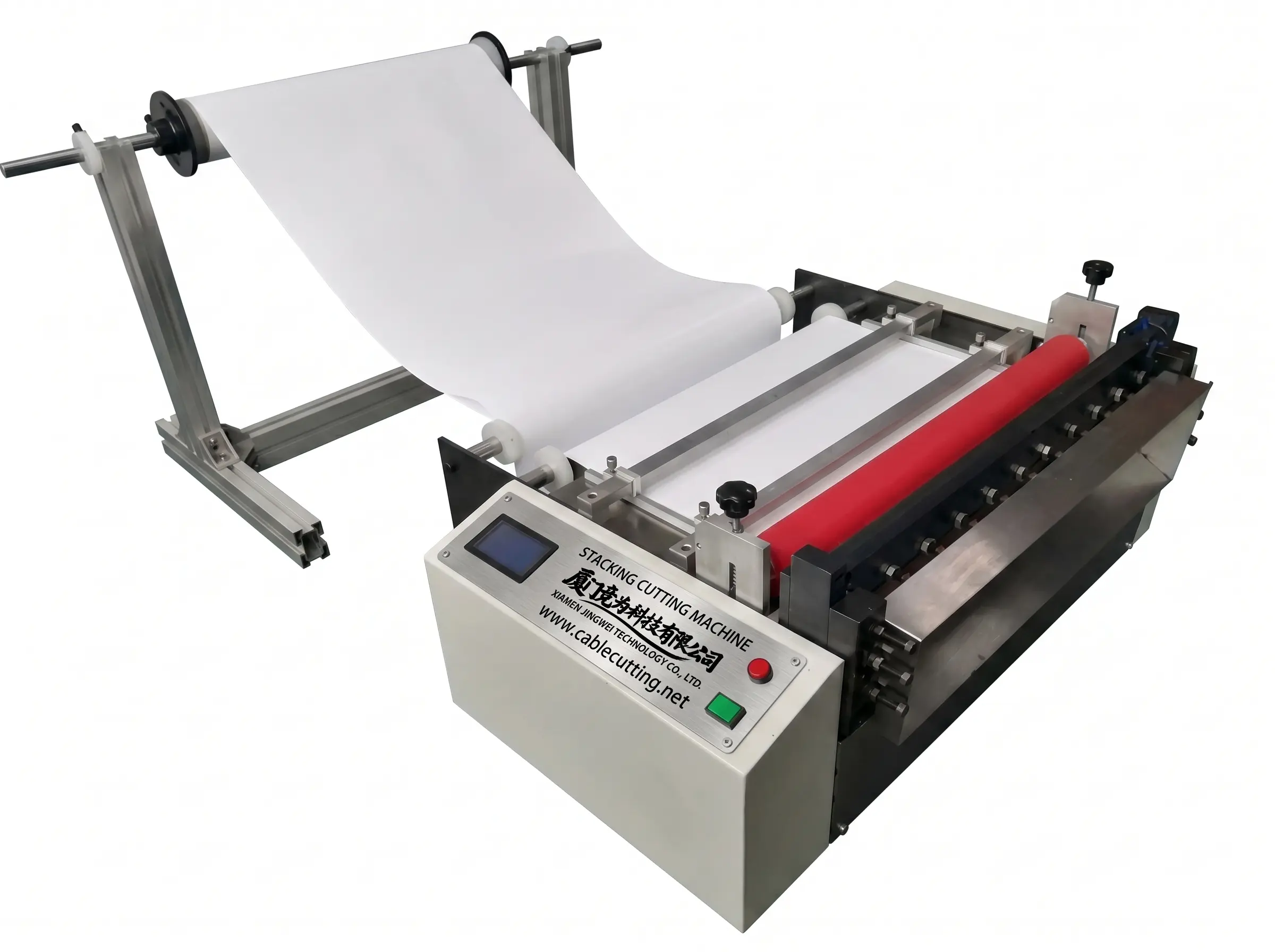

Automatic Stacking Cutting Machine for Fabric & Wire

Name: Automatic Stacking Cutting Machine for Fabric & Wire
Brand: Automatic Cable Stripping Equipment
SKU: Cut-100D to WPM-Cut-1200
Availability: InStock
Rating: 5 (1 reviews)

Multi-function intelligent cutting machine, Automatic Stacking Cutting Machine, Non-Woven Fabric Automatic Stacking Cutting Machine, Fabric Roll Automatic Stacking Cutting Machine
The system is a special motion control system developed by our company. It is widely used in the electronics industry, automotive and motorcycle industry, electrical appliances, motors, toys, transformers, clothing, and other industries.

1. System composition
Main control board, keyboard, 128*64 LCD, stepping driver, stepping motor, roller, and so on
2. Technical parameters
Model: 100D model, 100S model, 200 model, 300 model, 400 model
500 models, 600 models, 700 models, 800 models
1. power supply: 220V 50/60HZ
Length of 2. segments: 0.1-----99999.9mm
3, the characteristics of the machine
1. LED large screen intuitive Chinese display, you can accurately adjust the length of cut and cut speed.
2. cutter time protection, the total number of settings, divided into the set, divided into pause time adjustable.
3. cut off automatically stop, do not need special stare, Shou. There are a variety of manual operations, convenient debugging
Two. Operation panel instructions

Model	Cutting width	Max cut length	Speed	Accuracy
WPM-Cut-100D	120mm	100M	80M/Minute	0.1mm
WPM-Cut-200	215mm	100M	80M/Minute	0.1mm
WPM-Cut- 300	315mm	100M	80M/Minute	0.1mm
WPM-Cut- 400	415mm	100M	80M/Minute	0.1mm
WPM-Cut- 500	515mm	100M	80M/Minute	0.1mm
WPM-Cut- 600	615mm	100M	80M/Minute	0.1mm
WPM-Cut- 700	715mm	100M	80M/Minute	0.1mm
WPM-Cut- 800	815mm	100M	80M/Minute	0.1mm
WPM-Cut- 1000	1015mm	100M	80M/Minute	0.1mm
WPM-Cut- 1200	1215mm	100M	80M/Minute	0.1mm

What materials can the Automatic Stacking Cutting Machine process?

The Cut-100D to WPM-Cut-1200 series is a versatile multi-function cutting machine designed to handle fabric rolls, non-woven materials, and wire processing. It is ideal for industries requiring precision cutting of textiles, technical textiles, and wire components, making it a comprehensive industrial cutting system.

What is the cutting accuracy and speed of this machine?

This high-precision automatic stacking cutting machine delivers exceptional accuracy of up to 0.1mm and operates at speeds up to 80 meters per minute. This combination ensures efficient, high-volume production with minimal material waste, enhancing overall productivity for fabric and wire cutting operations.

What are the available model sizes for the fabric roll cutting machine?

The product line offers models ranging from the Cut-100D to the WPM-Cut-1200, accommodating cutting widths up to 1200mm. This range allows you to select a model that precisely matches your material width requirements, providing flexibility for various industrial applications.

How does the automatic stacking feature benefit my production line?

The integrated automatic stacking system organizes cut pieces immediately after cutting, eliminating manual handling. This feature significantly reduces labor costs, minimizes errors, and ensures a smooth, continuous workflow, which is crucial for high-speed operations in fabric and wire processing.

Is this machine built for heavy-duty industrial use?

Yes. Engineered for industrial-grade durability, this precision cutting equipment is constructed with robust components to withstand continuous operation in demanding environments. Its reliable design ensures long-term performance with minimal downtime, offering an excellent return on investment for your cutting operations.
