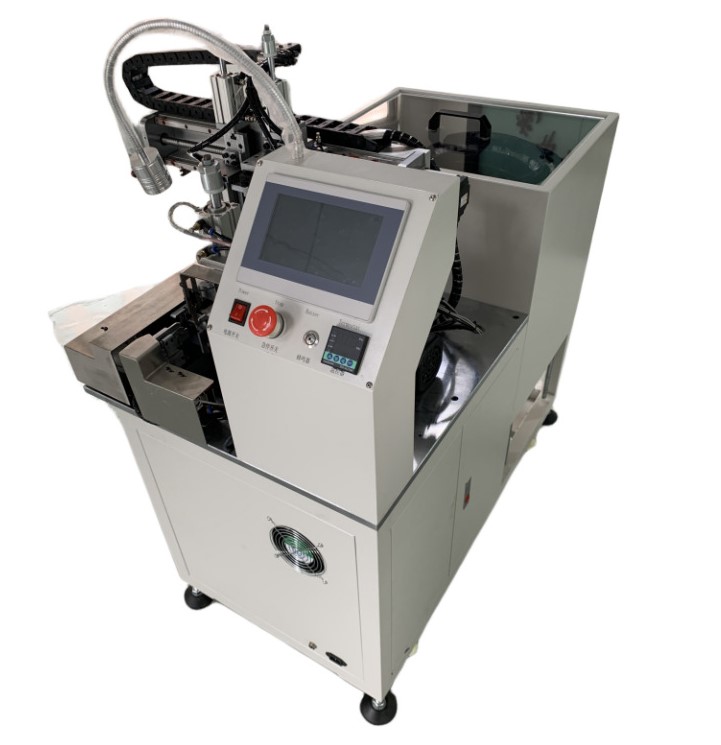

Crystal Head Riveting Press SJM01

Detailed description

High-Efficiency Crystal Heads Machine - Automate Your Network Cable Plug Riveting Process

Introduction:

Introducing the Crystal Heads Machine, a revolutionary solution designed to automate and significantly enhance your network cable plug assembly process. This advanced machine, specifically engineered for crystal head automatic threading riveting press applications, streamlines the often time-consuming and labor-intensive process of RJ45 connector termination. The Crystal Heads Machine excels in performing core line leveling, shearing, automatic feeding of crystal heads, crystal head wearing, and crystal head pressing – all in a single, continuous operation. This one-time completion drastically improves production efficiency and ensures consistent, high-quality network cable plug assemblies.

Key Features for Unmatched Production Efficiency:

The Crystal Heads Machine is packed with features designed to maximize throughput and minimize manual labor:

• Fully Automatic Operation: Experience seamless automation from start to finish with a machine that automatically handles core line leveling, shearing, crystal head feeding, wearing, and pressing, minimizing manual intervention and maximizing output.
• One-Time Completion Process: The machine performs all critical steps – leveling, shearing, feeding, wearing, and pressing – in a single, integrated cycle, significantly accelerating the production process and reducing cycle time.
• Enhanced Production Efficiency: By automating multiple steps, this Crystal Heads Machine dramatically improves production efficiency compared to manual assembly methods, allowing for higher output and faster turnaround times.
• High Capacity Production Rate: Achieve impressive production rates of 500~700 pieces per hour, depending on operator proficiency, enabling high-volume manufacturing to meet demanding production schedules.
• Adjustable Stripping and Cutting Parameters: Offers adjustable stripping size requirements (10~20mm) and length after cutting (8~14mm), providing flexibility to accommodate various network cable specifications.
• Robust and Stable Performance: Engineered for stable and reliable operation, ensuring consistent performance and minimizing downtime in your production environment.
• Space-Saving Footprint: While offering high capacity, the machine’s dimensions are optimized for a manageable footprint, allowing for efficient use of factory space.

Machine Model and Core Functionality:

• Machine Model: SJM01 - A robust and specifically designed model for crystal head processing.
• Core Functionality: Crystal head automatic threading riveting press - Automates the complete process of threading, riveting, and pressing crystal heads onto network cables.
• Primary Application: Network cable plug crystal head riveting process - Optimized for RJ45 connector termination on network cables.
• Key Process Steps Automated: Core line leveling, shearing, automatic feeding crystal heads, crystal head wearing, crystal head pressing.

Technical Specifications for Reliable Operation:

• Machine Model: SJM01
• Voltage: 220V 50HZ (Standard voltage for industrial applications)
• Power: 700W (Efficient power consumption)
• Air Pressure Requirement: Above 0.5MPa (Pneumatic operation for reliable force application)
• Production Capacity: 500~700PCS/hour (Operator proficiency dependent - indicating potential for even higher output with skilled operators)
• Stripping Size Requirement: 10~20mm (Adjustable stripping range)
• Length after Cutting: 8~14mm (Adjustable cutting length range)
• Weight: 280KG (Stable and robust machine construction)
• Machine Size: 138012001500mm (Optimized dimensions for factory integration)

Conclusion:

Invest in the Crystal Heads Machine Model SJM01 to revolutionize your network cable plug assembly process. This crystal head automatic threading riveting press significantly boosts production efficiency, reduces labor costs, and ensures consistent, high-quality RJ45 connector terminations. Contact us today to learn more about how the Crystal Heads Machine can transform your production line and elevate your manufacturing capabilities!
