Automatic wire coiling and binding machine WPM-212
Model No: WPM-212
wire coiling and binding machine, Wire Twist Tie Machine, Cable Coil Winding, And Binding Machine, Cable Coil Binding Machine, Automatic Wire Twist Tie Machine
Winding range* 50-200mm
Binding range* 8-30mm
Twist shape Round, long, 8shape
Available wire AC cable, DC cable, data line, video cable, and other electric wires
Length accuracy ±(0.002*L) mm
Productivity 66-75 times/min
Noise level <70dBA
Electrical connection AC 220/110V/50/60HZ
Operation interface Bilingual
Machine dimensions: 500*300*400mm
Weight: 40kg
Package: Wooden case
Port of Loading: Xiamen
Lead time 3-5 days after payment
Payment Way T/T, Paypal, Western Union
- Inquiry now
Detailed description
wire coiling and binding machine, Wire Twist Tie Machine, Cable Coil Winding, And Binding Machine, Cable Coil Binding Machine, Automatic Wire Twist Tie Machine
Features:

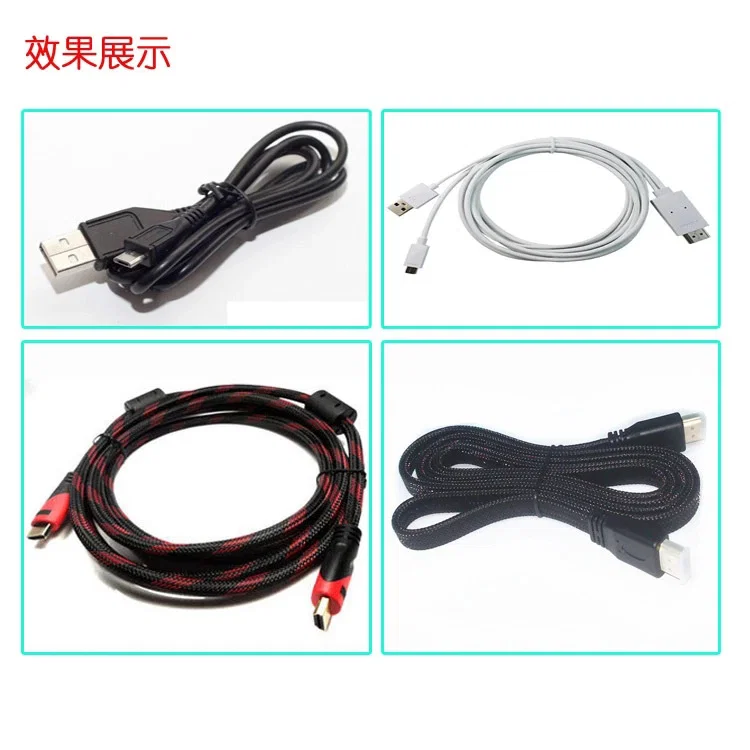

1. Semi-automatic winding& bunding machine takes advanced technology and precision manufacturing, winding and tying AC cable, DC cable, data wire, cable, other electric wires, and twisted bundles. Wire heads can be on one side or two sides. Winding and tying are accomplished at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of enormous labor and injuring fingers as well as saving the high cost of the proprietor.
Characters:
1. The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, several circles can be set up at random according to users’ requirements.
2. This machine can show the actual production quantity at any time and set up the quantity of each carton. When the quantity range setting quantity, the machine will automatically alert and shut down.
3. When something wrong during work, the machine warns operators immediately.
Model |
||||
Winding range* |
50-200mm |
50-200mm |
50-250mm |
50-300mm |
Binding range* |
8-30mm |
5-30mm |
18-45mm |
40-80mm |
Tie length |
65-130mm |
75-140mm |
120-190mm |
200-300mm |
Twist shape |
Round, long, 8shape |
Round, long, 8shape |
Round, long, 8shape |
Round, long, 8shape |
Available wire |
AC cable, DC cable, data line, video cable, other electric wires |
AC cable, DC cable, data line, video cable, other electric wires |
AC cable, DC cable, data line, video cable, other electric wires |
AC cable, DC cable, data line, video cable, other electric wires |
Length accuracy |
±(0.002*L) mm |
±(0.002*L) mm |
±(0.002*L) mm |
±(0.002*L) mm |
Productivity |
66-75 times/min |
66-75 times/min |
66-75 times/min |
66-75 times/min |
Noise level |
<70dBA |
<70dBA |
<70dBA |
<70dBA |
Electrical connection |
AC 220/110V/50/60HZ |
AC 220/110V/50/60HZ |
AC 220/110V/50/60HZ |
AC 220/110V/50/60HZ |
Operation interface |
Touch screen |
Touch screen |
Touch screen |
Touch screen |
Machine dimension: |
485*456*315mm |
455*456*315mm |
485*435*340mm |
550*610*420mm |
Weight: |
45kg |
42kg |
52kg |
65kg |
Package: |
Wooden case |
Wooden case |
Wooden case |
Wooden case |
