Detailed description

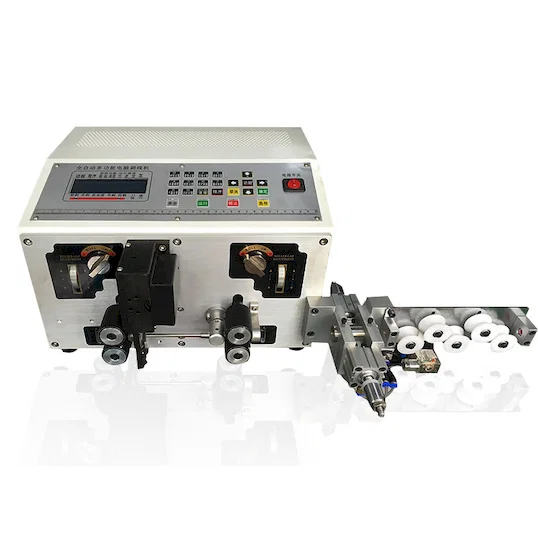

wire cutting and stripping machine for middle stripping WPM-0-4M
This machine is mainly suitable for 0.1-4.5mm² smaller wire processing. It can cut the wire into specific lengths, and strip wire insulation at the same time. I can do full-strip, partial-strip, and different part stripping. Its most feature is the middle open window stripping function, it will not slide the wires.
Safety protection.
A plastic Protection shell is available， automatic wire feeding machine is available.
Technical Data
Name Automatic wire cutting and stripping machine
Cutting Length 1-9999mm
Stripping Length Front: 15mm; Rear: 35mm
Voltage 220V/110V
Power Rate 300W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section 0.1-4.5mm2
Optimal stripped wire: PVC// silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel
Output L = 100 mm, 3000 8000 PCS/h (high yield)
Weight 35KG
Dimension 390 x350x255mm
