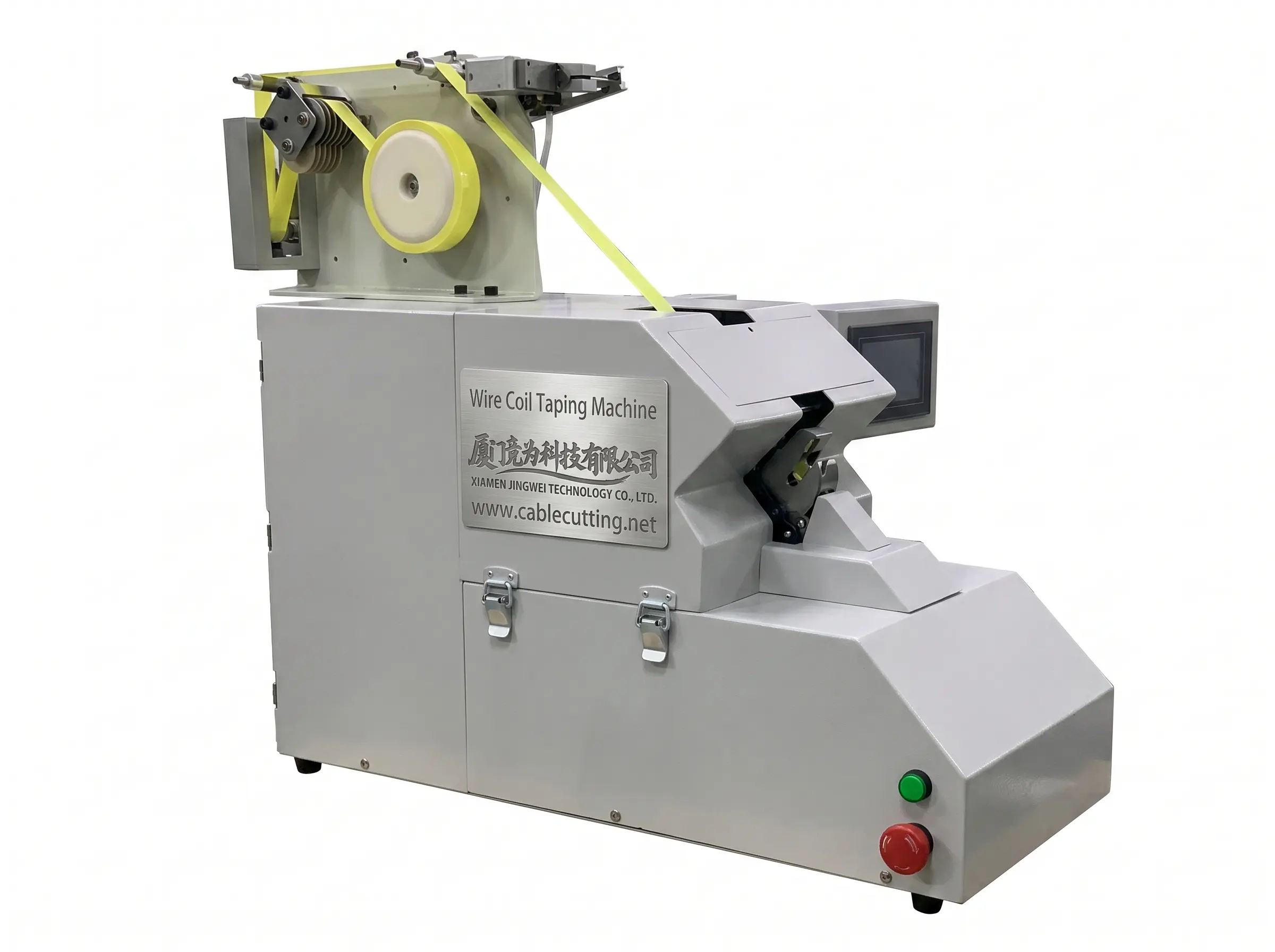

Semi-Automatic 1.5S Wire Coil Taping Machine WPM-75

Name: Semi-Automatic 1.5S Wire Coil Taping Machine WPM-75
Brand: Automatic Cable Stripping Equipment
SKU: WPM-75
Availability: InStock
Rating: 5 (1 reviews)

1.5S Taping Machine for Wire Coils, Semi-automatic adhesive tape wrapping wire coil machine
Product Description
This is a semi-automatic tape wrapping-around machine for taping wire coils. The taping speed is within 1.5s.
1. Taping speed: within 1.5s
2. Applicable tape width: 12mm-18mm
3. Max tape OD: 120mm
4. Tape cutting range: 45mm-75mm
5. Replace the adhesive tape: the old and new adhesive tapes are bonded end to end.
6. The taping tightness is subject to the existing mold. If there is a special product, it is necessary to customize the reel according to the product size.
7. The vulnerable parts of this machine are paper-cutting scissors, paper rolls, and contact switches.
8. Other electrical components are guaranteed for one year, except for damage caused by man-made and irresistible factors.
Specification
Model Number WPM-75
Usage WINDING
Application wire coil-tapping
Taping speed 1.5S
Tape inner diameter 76mm
Tape outer diameter Max 120mm
Voltage 220v 50hz, 0.55kw
Cutting length 45-75 mm
Tape width 12-18mm
Air pressure 4kg/cm2
Size 670x390x480 mm
Weight 30kg

Taping Machine for Wire Coils, Semi-automatic adhesive tape wrapping wire coil machine

What is the primary application of the Semi-Automatic 1.5S Wire Coil Taping Machine WPM-75?

The WPM-75 is designed for efficient wire coil and cable harness wrapping in manufacturing settings. It is ideal for securing wire bundles, coils, and harnesses with adhesive tape, streamlining production in industries such as automotive, appliance, and electrical equipment manufacturing where organized and protected wiring is essential.

How fast is the '1.5s taping speed' and what does it mean for my production?

The '1.5s taping speed' refers to the machine's ability to complete a standard taping cycle in just 1.5 seconds per coil. This high speed significantly boosts production throughput, reduces manual labor time, and increases overall efficiency, allowing you to wrap more wire coils per hour compared to fully manual methods.

What are the tape and coil size specifications for the WPM-75 machine?

This semi-automatic taping machine accommodates adhesive tape widths from 12mm to 18mm. It can handle wire coils with a maximum outer diameter (OD) of up to 120mm. This versatile range makes it suitable for a wide variety of standard wire coil and cable harness sizes used in industrial applications.

What power supply is required, and is the machine easy to operate?

The WPM-75 operates on a standard 220V power supply. As a semi-automatic machine, it is designed for user-friendly operation: an operator places the coil, and the machine automatically performs the precise taping cycle. This setup minimizes training time and reduces operator fatigue while ensuring consistent, high-quality wraps.

What are the key durability and efficiency benefits of this wire coil wrapping machine?

Built for industrial environments, the WPM-75 features a robust construction for long-term durability and minimal maintenance. Its efficiency stems from the fast 1.5-second cycle, consistent taping tension, and reliable performance, which together reduce material waste, lower per-unit production costs, and ensure a reliable return on investment for your cable harness equipment line.
