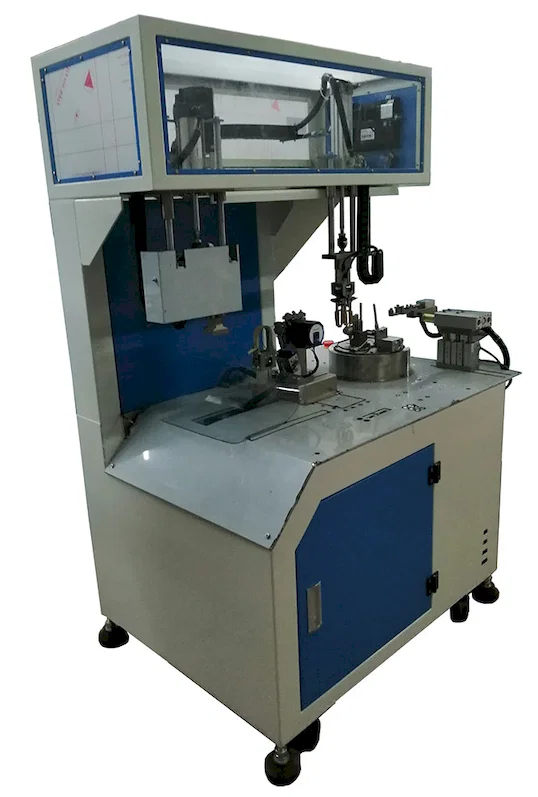

Small 8 type single tie type automatic winding and tie machine WPM-RT-81S
Technical parameters:
Suitable for AC/DC/USB cable
Winding appearance small 8-figure single cable tie
Applicable line length ≤3 m(depending on the line of sight)
Applicable wire diameter ≤ φ 4 mm
The spacing of winding is 45-80mm
Binding diameter ≤20 mm
The head length is 0-130 mm
Tail length >0 mm
Production efficiency 1800PCS /h (1-meter line length, 3 turns, outcrop, and outcrop)
Applicable binding tape-coated iron core ≤ 7.5kg/roll
Applicable pressure 0.55-0.65Mpa
Applicable voltage 220V 50Hz
Machine power ≤2800W
The machine size is about 1040L*720W*1540H mm
The weight of the machine is about 210KG

Main components:
Cylinder: Yadeke cylinder and solenoid valve
Motor: Winding main servo motor 1500W Turbot
Motor: take line translation servo motor Turbot 750W
Motor: Twisted tie belt 57 stepper motor thunder race
Motor: Spit tie belt 57-step motor thunder race
Motor: storage tape motor 6W
Slide block: take line translation double slide block
PLC: vigor
Screen: Dimension control 7"
Power supply: clear weft
Frame: the iron frame is painted blue and white
Wire grab/twisting claw/lower claw Material: stainless steel
Drive system: high-reliability servo system, a control system for the high-speed stable industrial controller and system software, Chinese and English bilingual version.

Features:
Suitable for USB/DC/AC power supply, with the option to retain both ends or leave one end open. Additionally, it features programmable logic controller (PLC) control and a bilingual man-machine interface.
1. the new style. high matching. around the small figure of 8. tie a tie;
2. suitable for USB/DC/AC line. can leave the head and tail. head and tail. leave the head and tail;
3. winding motor adopts 1500W servo. full power. more stable;
4. take line translation motor 750W servo. eliminate step loss phenomenon and demagnetization problem of stepping motor. translation is more stable;
5. the top transparent chassis. pipeline layout and quality at a glance. high-grade atmosphere. three sides + top four sides can be disassembled. convenient maintenance;
6. independent power distribution cabinet. can be removed as a whole. electrical lines standard. neat. standard. convenient maintenance;
7. the bearing capacity of the tie belt can reach 7.5kg. reducing The time of changing the tie belt. and improving work efficiency;
8. A separate button is added to the structure of the spit tie belt. which is more convenient for installation and debugging;
9. rubber band under the claw structure optimization. make rubber band more wear resistance. installation and debugging more convenient,
10. the barometer upgrade. can automatically filter. drainage;
11. aluminum plate. conversion plate. fully upgraded into steel material. the machine is more durable;
12. The connection structure of the twisting claw. taking claw and lower claw is made of stainless steel. which is more stable and beautiful.
13. coil structure upgrade. less noise. more stable;
14. the production efficiency can reach 1800 pieces/hour. saving labor;
15. easy to operate. easy to debug. easy to maintain;
16. small size. does not occupy the place. save the rent;
17. humanized design. reduce the fatigue intensity of staff;
18. Programmable logic controller (PLC) control. Bilingual man-machine interface control;
