Home > Semi-auto Crimping Machine > Strip And Crimp Machine > Loose Tubular Terminal Crimping Machine WPM-KAC05B

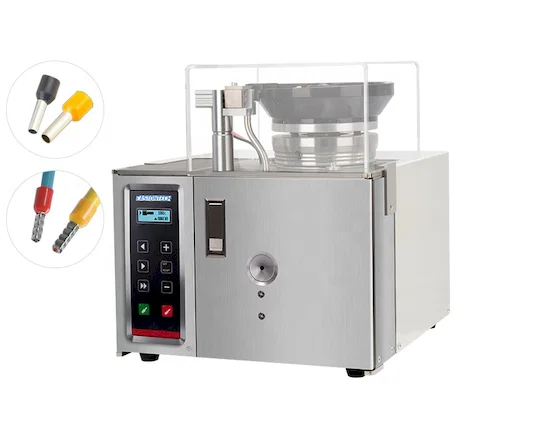

Loose Tubular Terminal Crimping Machine WPM-KAC05B
- Model No: WPM-KAC05B
- Loose Tubular Terminal Crimping Machine, Loose Insulator Crimping Machine, Wire Strip And Crimping Machine, European Single Terminal Press Machine
Stripping length 8-12mm
Speed 1.5s/time
Control method touch screen, electronic control, pneumatic control
Applicable wire BVR hard wire: 0.5-4mm2,
the soft wire needs to be twisted: 0.5-2.5 mm2
Terminal supply vibration plate feeding
Crimping method left and right horizontal crimping in parallel
Rated power supply AC220V 50Hz
Working pressure 0.3-0.8MPA
Working temperature -10/40℃
Weight about 30KG
Dimension 42cmx40cmx39cm - Inquiry now
Detailed description
Loose Tubular Terminal Crimping Machine, Loose Insulator Crimping Machine, Wire Strip And Crimping Machine, European Single Terminal Press Machine
Suitable for crimping a variety of tube-shaped loose terminals.
Wire stripping and crimping are completed at one time.
The flared shape makes wire threading convenient
Adopting vibration plate feeding method, convenient and quick to replace terminals. Processing wire size: 0.5-4mm2
Loose Tubular Terminal Crimping Machine, Loose Insulator Crimping Machine, Wire Strip And Crimping Machine, European Single Terminal Press Machine
Suitable for crimping a variety of tube-shaped loose terminals.
Wire stripping and crimping are completed at one time.
The flared shape makes wire threading convenient
Adopting vibration plate feeding method, convenient and quick to replace terminals. Processing wire size: 0.5-4mm2
|
Model |
WPM-KAC05B |
|
Stripping length |
8-12mm |
|
Speed |
1.5s/time |
|
Control method |
touch screen, electronic control, pneumatic control |
|
Applicable wire |
BVR hard wire: 0.5-4mm2, soft wire needs to be twisted: 0.5-2.5 mm2 |
|
Terminal supply |
vibration plate feeding |
|
Crimping method |
left and right horizontal crimping in parallel |
|
Rated power supply |
AC220V 50Hz |
|
Working pressure |
0.3-0.8MPA |
|
Working temperature |
-10/40℃ |
|
Weight |
about 30KG |
|
Dimension |
42cmx40cmx39cm |
