Home > Wire Cutting Stripping Machine > Wire Twisting Stripping > Flat Double-layer Cable Cutting Stripping Twisting Machine WPM-320

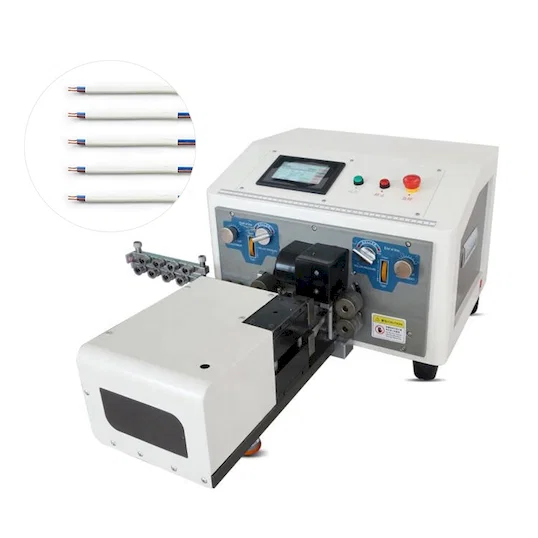

Flat double-layer Cable Cutting stripping twisting Machine WPM-320
- Model No: WPM-320
- Flat double-layer cable cutting, stripping and twisting machine; fully automatic electric wire stripping machine; copper cable outer jacket and core wire stripping and twisting machine; multi-core flat cable cutting and stripping machine.
Function Wire cutting, double-end stripping and twisting, middle stripping
Wire range 2*(0.3-2.0mm²)+twisting
Cutting length 0.1mm-99999.9mm
Stripping length Sheathed wire: head:0.1-250mm tail: 0.1-70mm
Inner core: head:0.1-30mm tail: 0.1-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
Intermediate strip Can be customized
Capacity 500-1500 / h
Blade material Imported tungsten steel / high-speed steel
Power AC110V/220V 50/60HZ
Body size 565mm * 385mm * 370mm
Bodyweight 43kg
Remark function Automatic entry/exit, timing start, jog adjustment
<> <> <> - Inquiry now
Detailed description
Flat double-layer Cable Cutting stripping twisting Machine
Function Wire cutting, double-end stripping and twisting, middle stripping
Wire range 2*(0.3-2.0mm²)+twisting
Cutting length 0.1mm-99999.9mm
Stripping length Sheathed wire: head:0.1-250mm tail: 0.1-70mm
Inner core: head:0.1-30mm tail: 0.1-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
Intermediate strip Can be customized
Capacity 500-1500 / h
Blade material Imported tungsten steel / high-speed steel
Power AC110V/220V 50/60HZ
Body size 565mm * 385mm * 370mm
Bodyweight 43kg
Remark function Automatic entry/exit, timing start, jog adjustment
Applicator
Full Automatic Electric Wire Stripping Machine, Wire Stripping Twisting Machine, Cable Cutting And Stripping Machine
Electric Wire Stripping Machine, Copper Cable Stripping Machine, Wire Stripping Twisting Machine, Outer Jacket And Core Wire Stripping Machine, Cable Cutting And Stripping Machine, Flat Cable Stripping Machine, Multi Core Cable Stripping Machine
Flat double-layer Cable Cutting stripping twisting Machine
Function Wire cutting, double-end stripping and twisting, middle stripping
Wire range 2*(0.3-2.0mm²)+twisting
Cutting length 0.1mm-99999.9mm
Stripping length Sheathed wire: head:0.1-250mm tail: 0.1-70mm
Inner core: head:0.1-30mm tail: 0.1-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
Intermediate strip Can be customized
Capacity 500-1500 / h
Blade material Imported tungsten steel / high-speed steel
Power AC110V/220V 50/60HZ
Body size 565mm * 385mm * 370mm
Bodyweight 43kg
Remark function Automatic entry/exit, timing start, jog adjustment
Applicator
