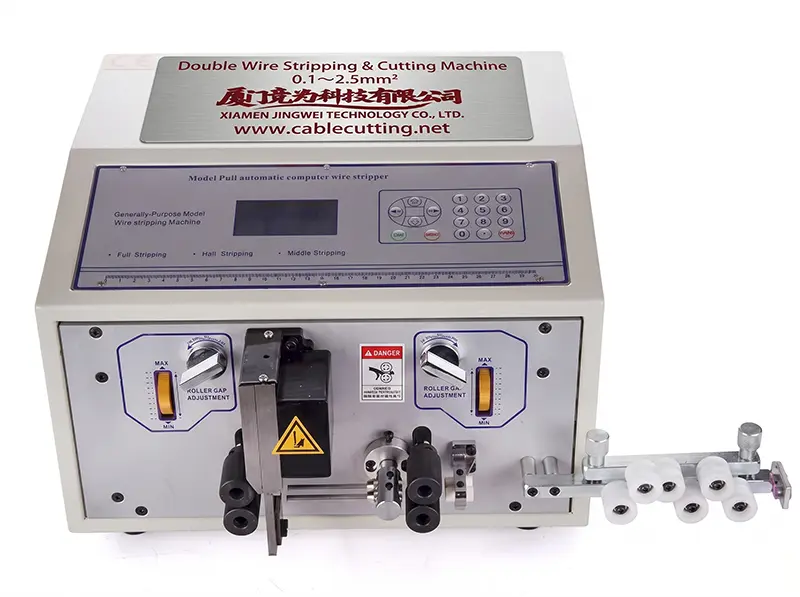

Automatic Double Wire Stripping Machine for Cable Harness WPM-09F

Name: Automatic Double Wire Stripping Machine for Cable Harness...
Brand: Automatic Cable Stripping Equipment
SKU: WPM-09F
Availability: InStock
Rating: 5 (1 reviews)

Double feeding wire stripping machine, Double line Wire Cutting Stripping Machine, Electrical Wire Stripping Machine, Cable Cutting Stripping Machine
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.
Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
Available Wire Cross-Section Range: 0.1～2.5mm2, double wires feeding and stripping
Conduit Diameter: ￠6mm
Cutting Length: 1～9999mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~35mm, tail 0~15mm
Middle Stripping Section: Max 11
Speed: 5000-10000pcs/h
Display Way: English LCD
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 200W
Measurement: 390X350X255mm
Weight: 32kg

Double feeding wires stripping machine, Double line Wire Cutting Stripping Machine, Electrical Wire Stripping Machine, Cable Cutting Stripping Machine

sample display of Double feeding wires stripping machine, Double line Wire Cutting Stripping Machine, Electrical Wire Stripping Machine, Cable Cutting Stripping Machine

What is the primary application and benefit of the WPM-09F Automatic Double Wire Stripping Machine?

The WPM-09F is designed for high-volume industrial cable harness manufacturing. Its primary benefit is the ability to strip both ends of a wire simultaneously at high speed, significantly increasing production efficiency. It processes 5000 to 10000 pieces per hour, making it ideal for automotive, appliance, and electronics wiring harness production lines where speed and precision are critical.

What wire sizes and types can the WPM-09F machine handle?

This CNC wire stripper is engineered to process a wide range of electrical wires, specifically those with a cross-sectional area from 0.1mm² to 2.5mm². It is suitable for standard single-core and multi-core copper wires commonly used in harness assembly. The machine's adjustable tooling and CNC precision ensure clean, consistent stripping without damaging the conductor across this entire size spectrum.

How does the CNC precision of the WPM-09F improve wire stripping quality?

The CNC (Computer Numerical Control) system provides exceptional accuracy and repeatability. It allows for precise programming of strip length, cut depth, and processing sequences. This eliminates human error, ensures every wire is stripped to exact specifications, and guarantees consistent quality batch after batch. This precision is crucial for meeting stringent automotive and industrial standards and reducing material waste from mis-stripped wires.

What are the key features that make this an automatic double wire stripper?

Key automation features include simultaneous dual-end stripping, automatic wire feeding, cutting to length, and stripping in a single cycle. The 'double wire' capability refers to its efficient processing of both wire ends at once. It features a user-friendly CNC interface for programming, servo-driven mechanisms for accuracy, and robust construction for continuous industrial operation, minimizing manual labor and maximizing throughput.

How does the WPM-09F integrate into an existing harness manufacturing workflow?

The WPM-09F is a standalone industrial wire processor that seamlessly fits into the early stages of a harness production line. After wire spools are loaded, it automates the cutting and stripping process, outputting precise wire leads ready for terminal crimping or assembly onto boards. Its high speed (5000-10000 pcs/hour) helps create a steady, reliable supply of processed wires, preventing bottlenecks and supporting lean manufacturing principles in cable harness production.
