Coaxial cable cutting and Stripping Machine WPM-9600S

Coaxial cable cutting and Stripping Machine WPM-9600S
Model No: WPM -9600S
The coaxial cable cutting and stripping machine is designed for the automatic cutting and stripping of coaxial cables, special radix wires, and other similar materials. It is a highly efficient cable stripping machine that can handle various types of cables with ease.
wire capability OD：0.80-5.5mm
The maximum Strip：Left end:40(mm) Right end (unlimited)
Maximum strip layers：4 layers
Power supply：220V/50HZ P:380W
Cutting off length：70mm-9999mm

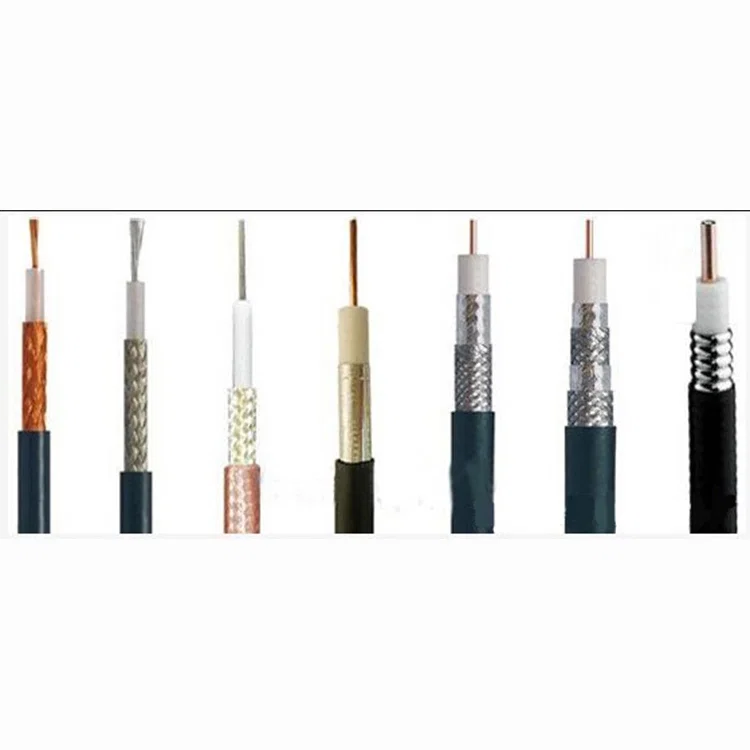

The material range： Coaxial cable
Store data：60 parameters can be stored in procedures
Drive mode： Motor, ball screw drive
Inquiry now

Detailed description

Coaxial cable cutting and Stripping Machine WPM-9600S
The coaxial cable cutting and stripping machine is designed for the automatic cutting and stripping of coaxial cables, special radix wires, and other similar materials. It is a highly efficient cable stripping machine that can handle various types of cables with ease.
mainly used for coaxial cable and special radix wire transform, choose the most advanced revolution rest, raised accuracy and velocity, adopt the particular axis clamping device and gyration tool angel method, the maximum could shell 9 F has never needed to replace knife blade to then liberalizing to establish to make controller towards the process to correspond the size and cortex electric wire, and equipping canning and incise wire diameter through a figure display.

Machinery specification:

Model	WPM -9600S
wire capability OD	0.80-5.5mm
The maximum Strip	Left end:40(mm) Right end (un-limited)
Maximum strip layers	4 layers
Power supply	220V/50HZ P:380W
Cutting off length	70mm-9999mm
The material range coaxial	Coaxial cable
Store data	60 parameters can be stored procedures
Drive mode	Motor, ball screw drive

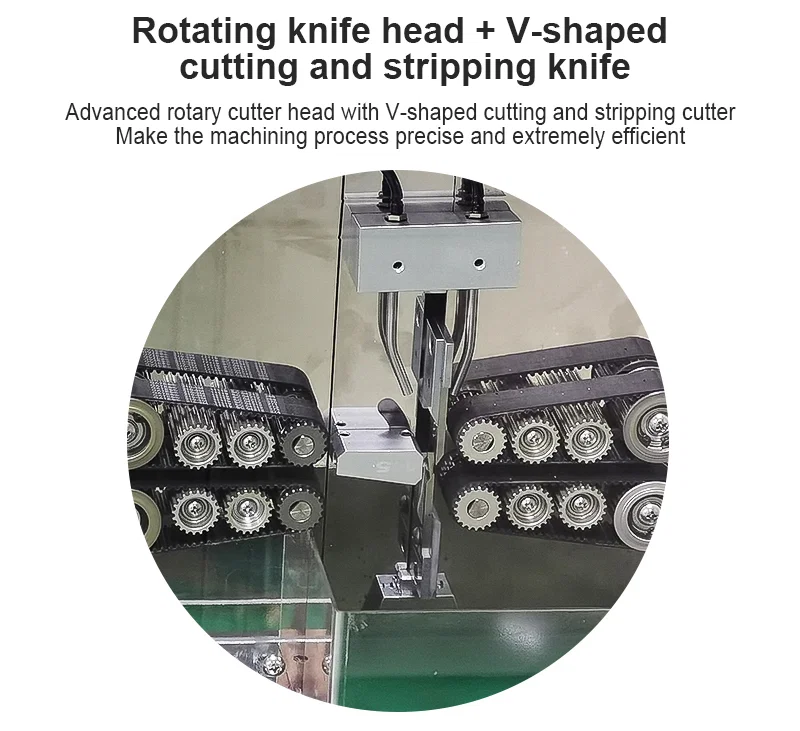

Knife blade	2 pcs of the rotating cutter, material: tungsten steel material peeling blades 4 pcs high-speed steel
Productivity	500-700pcs/h

Power supply	220V/50HZ P:380W
Weight	100(kg)
Features size	800700440mm
Working condition	0-50 degrees, the drying degree is just right, have no dither of workbench surface, drying degree just right workshop
