Automatic Wire Stripping Crimping Twisting Tinning Machine WPM-151T

Name: Automatic Wire Stripping Crimping Twisting Tinning Machin...
Brand: Automatic Cable Stripping Equipment
SKU: WPM-151T
Availability: InStock
Rating: 5 (1 reviews)

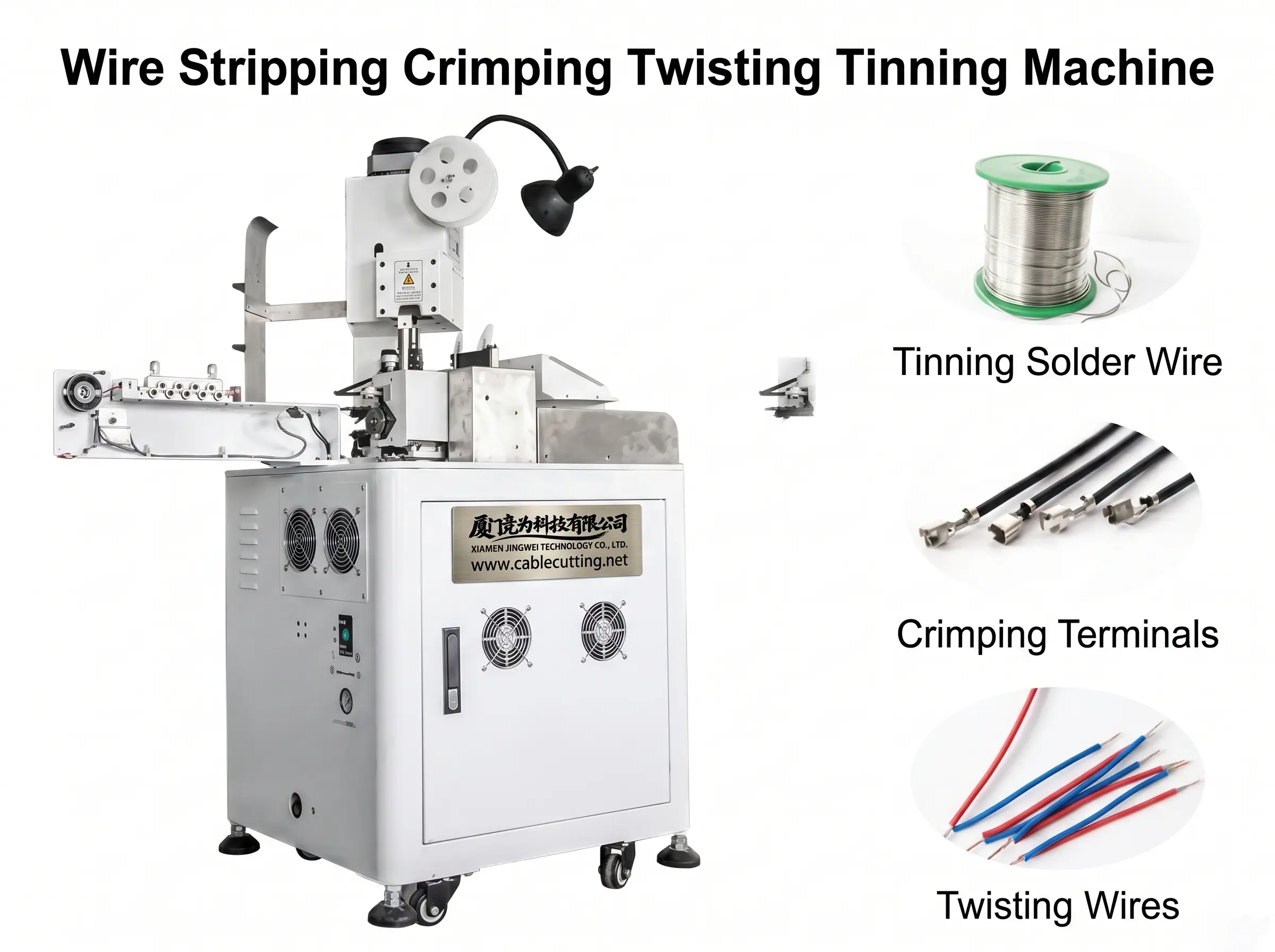

Automatic side cable crimping and twisting tinning machine
1. It is a one-ended automatic wire stripping twisting tinning and crimping machine, one side stripping and crimping terminal,
another side stripping and twisting tinning, if you do not need to twist and tin the wire, you can also turn off the twisting
and tinning function in the program.

2. PLC control with touch screen, the stripping length, cutting length, cutting depth, and crimping depth can be set and saved in
PLC touch screens, wires, and terminals are processed carefully and gently during cutting, stripping, and crimping procedures.

3. OTP side-feeding die and straight-feeding die can be used on this machine, if you have a special die, we can change the machine
to fit your die(such as JST, Molex, AMP, and other band die set)

4. High precision servo motor control, low working noise, long life service, and stable performance.

5. this machine can be equipped with a conveyor belt without modifying it to process long wires conveniently.
Automatic side cable crimping and twisting tinning machine, automatic cable stripping crimping and twisting machine
Power: AC220v/50/60hz
Capacity: 4000pcs~5000pcs/h(L=150MM)
Wire range: AWG28#-AWG14#(can be customized)
Cutting length: 45-9999mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Pressure: 2.0T
Applicator range: OTP applicator, European applicator, and pneumatic applicator.
Air pressure: 5-6kgf
Size: 965*835*1860
Weight: 280kg

What types of wire processing operations can the WPM-151T machine perform?

The WPM-151T is a fully automatic, multi-function wire processing machine. It is designed to perform stripping, crimping, twisting, and tinning operations in a single, integrated cycle. This makes it ideal for cable harness manufacturing, as it eliminates the need for multiple standalone machines, streamlining production and improving consistency.

What is the production speed and wire size capacity of this automatic wire machine?

The machine offers high-efficiency production with a speed of 4000-5000 pieces per hour. It is engineered to handle a versatile range of wire sizes from AWG28 to AWG14, accommodating various applications in industrial wire processing, from fine electronics to more robust cable assemblies.

How is the WPM-151T controlled and what are the benefits of its control system?

The machine features advanced PLC (Programmable Logic Controller) with a user-friendly touch screen interface. This system allows for easy programming, storage of multiple job recipes, and precise control over all processing parameters. The integration of servo motors ensures high accuracy, repeatability, and smooth operation, reducing setup time and material waste.

Is this machine suitable for high-volume cable harness production?

Yes, absolutely. With its fully automatic operation, high speed, and multi-function capabilities, the WPM-151T is specifically built for high-volume cable harness equipment lines. Its reliability and consistency in performing stripping, crimping, twisting, and tinning make it a cornerstone for industrial wire processing, significantly boosting output and quality compared to manual or semi-automatic methods.

What are the main advantages of using a servo motor in this wire processor?

The use of servo motors provides several key advantages: exceptional precision in wire feed length, cutting, and terminal crimping; quiet and energy-efficient operation; and minimal maintenance requirements. This translates to superior product quality, reduced operational costs, and enhanced long-term reliability for your automatic terminal crimping and wire processing tasks.
